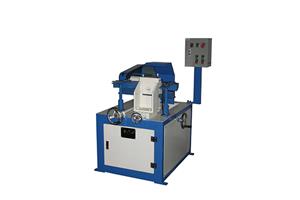

The round tube polishing machine is mainly used for hardware manufacturing, vehicle parts, steel wood furniture, instrument machinery, standard parts and before and after plating. Pipe polishing machine is the best choice for round tube, round stick and slender shaft polishing. The workpiece processed by the round tube polishing machine has high brightness and does not affect the original size of the workpiece, and is especially suitable for high-brightness polishing of the workpiece after the centerless grinding machine.
Feature:
1. Automatic tube finishing machine is a high efficiency pipe polishing machine, it’s a best solution for grinding & polishing & even mirror finishing the straight & curve round tube, even the oval tube.
2. Perfect for tube material: stainless steel, non ferrous metals, aluminum, brass, copper &etc.
3. The advanced planetary running system is a best polishing structure for best finishing quality & efficiency.
4. Pipe polishing machine use the different kinds of abrasive belts enables client to have a good idea for the wide range and different surface purpose.
5. Special automatic feeding system increases the productivity and quality in straight tubes. The planetary running system has the variable speed control to suit for different polishing requirement.
6. Advanced abrasive belts & feeding speed inverters supplies the wide range of power force.
7. Pipe polishing machine have advanced electromagnetism lock & unlock function supplies the easy-setting of polishing diameter and abrasive belts replacement.
8. Round tube polishing machine have Advanced abrasive belts opening scheme system can let the tube easily come into polishing area.
9. Foot pedal control the planetary disc lock-unlock & abrasive belts opening
10. Magnetic safety switch for planetary disc cover open-close.
Models Available:
|
Model |
|
114PBM |
|
Polishing working capacity |
mm |
Ф10-114 |
|
Power of motors |
KW |
4.74 |
|
Machine consumption |
A |
10 |
|
Linear speed limits of feeding units |
m/min |
1-5 |
|
Linear speed limits of abrasive belts |
m/s |
8-25 |
|
Abrasive belts dimensions |
mm |
940 * 50 |
|
Voltage & frequency |
/ |
380-400v,50Hz,Three Phase |
|
Weight |
kg |
250 |
|
Overall dimensions |
mm |
1000 * 800 * 1300 |
