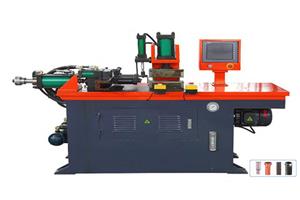

The pipe end forming machine is suitable for the processing of complex shapes of pipe ends. Tube end forming machine using different molds, the pipe can be flaring, shrinking, shrinking, bulging, and piercing, and manual, jog or automatic machining can be decided according to user requirements. The pipe end forming machine is widely used for processing and forming joints of pipe fittings, automobile oil pipes, water pipes and air conditioning pipes, and is an ideal pipe end forming processing equipment.
Tube end forming machine Features:
1. PLC controlling and hydraulic drivers system are imported.
2. Mobile-foot switch with function of auto, emergency stop and continue ensure high safety.
3. Pipe end forming machine can shrink, expand and blunt tube in various way and the processed shape include concavo- conves section, long, flat, square, extension form, shanting, V-shaped which is depends on customer’s requirements.
4. Easy die change is simplify flexible production.
|
Model |
|
38PEF |
50 PEF |
76 PEF e |
89 PEF |
114 PEF |
129 PEF |
|
Max. Pipe Reduction Capacity |
mm |
￠38×2 |
￠50×2 |
￠76×2 |
￠89×2 |
￠114×2 |
￠129×2 |
|
The Max. Reduction Length |
mm |
120 |
120 |
120 |
150 |
150 |
150 |
|
Motor Power |
kW |
3.0 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
Machine Weight |
kg |
1000 |
1300 |
2000 |
2500 |
3000 |
3500 |
