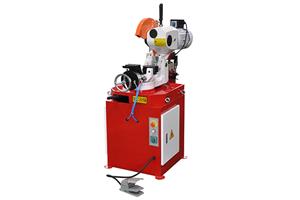

The pipe disk saw machine uses the principle of gear rotation to work, so that the tool can be quickly cut longitudinally, the steel tube can be fixed automatically, and the tool can be chamfered. The invention solves the problems of high energy consumption of metal pipe rotary processing, low cutting efficiency of stainless steel pipe, short tool life, low production work efficiency, poor quality of steel pipe end face, and inaccurate scale. Pipe disk saw machine is suitable for high-efficiency and precision cutting processing of oil casing, welded pipe, high-pressure boiler pipe, pipeline pipe and light casing, etc. Tube disk saw machine can meet the occasions of mass production in petroleum, metallurgy and bearing industries.
Feature:
1. The bilateral two-way clamp makes the workpiece smooth and the cut surface is smooth and free of burrs. Low noise and low pollution during sawing.
2. The precise cutting speed exceeds the band saw and the hacksaw, and the cut surface is smooth and not hot, saving secondary processing.
3. The pipe disk saw machine head can adjust the beveling or milling groove from left to right. The angle of the tube disk saw machine is accurate and the pipe connection is perfect.
4. Circulating cooling system with a large capacity oil storage barrel to ensure the life of the saw blade and the flat surface.
Tube Disk Saw Machine Models Available:
|
Model |
275PDS |
315PDS |
350PDS |
420PDS |
|
|
Square tube |
90° |
75*75mm |
90*90mm |
110*110mm |
110*110mm |
|
45° |
55*55mm |
75*75mm |
90*90mm |
100*100mm |
|
|
Round tube |
90° |
75mm |
90mm |
110mm |
125mm |
|
45° |
60mm |
75mm |
75mm |
125mm |
|
|
Rectangular tube |
90° |
80*60mm |
110*50mm |
110*50mm |
120*50mm |
|
45° |
70*60mm |
100*90mm |
100*90mm |
100*50mm |
|
|
Round bar |
90° |
20mm |
40mm |
50mm |
50mm |
|
45° |
20mm |
30mm |
35mm |
50mm |
|
|
Saw blade diameter |
275mm |
315mm |
350mm |
400mm |
|
|
Rotation speed |
50-100 giri/min |
50-100 giri/min |
50-100 giri/min |
30-60 giri/min |
|
|
Opening height |
105mm |
130mm |
130mm |
200mm |
|
|
Motor power |
2-2.4 kW |
2-2.4 kW |
2.4-3 kW |
3.3-4 kW |
|
