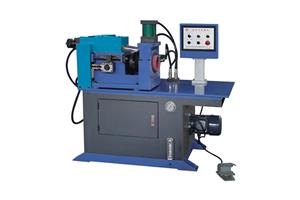

The clamping and cutter head of the automatic pipe chamfering machine have been carefully designed to ensure that the center line of the work piece and the cutter head is exactly the same, and the outer corner of the pipe end (chamfering of the rod end core) can be uniformly completed at one time, and the inner angle and the processing of the end face ensures the accurate processing size, and the vibration plate can be used for automatic feeding, which greatly improves the production efficiency and saves manpower of the tube chamfering machine.
Pipe Chamfering Machine Feature:
1. Feeding by hand, the knife enters forward and backward automatically, the speed is fast.
2. The tube chamfering machine is for chamfering the interior and external face of round pipes and bars at the same time with the fast and high accuracy features.
3. To ensure the processing work pieces and the centerline of knife plate stable, clamp tool and knife plate are designed precisely .You can finish the process equable at the same time .
4. The knife plate designed specially, and the knife normalized, then it is easy and quick to adjust the tool of the pipe chamfering machine.
Tube Chamfering Machine Models Available:
|
Model |
|
120PCM |
160PCM |
220PCM |
325PCM |
|
Diameter of The Suitable Pipes |
mm |
20-120 |
20-160 |
20-220 |
20-325 |
|
Chamfering Motor Power |
kW |
3 |
3 |
3 (with reducer) |
4 (with reducer) |
|
Machine Dimension |
mm |
1200×800×1000 |
1500×1000×1200 |
2000×1300×1500 |
2500×1500×1800 |
|
Pump Flow |
ml/rev |
10 |
10 |
12 |
16 |
|
Pump Motor Power |
kW |
1.1 |
1.5 |
2.2 |
4 |
|
Machine Weight |
kg |
800 |
1000 |
1500 |
2200 |
