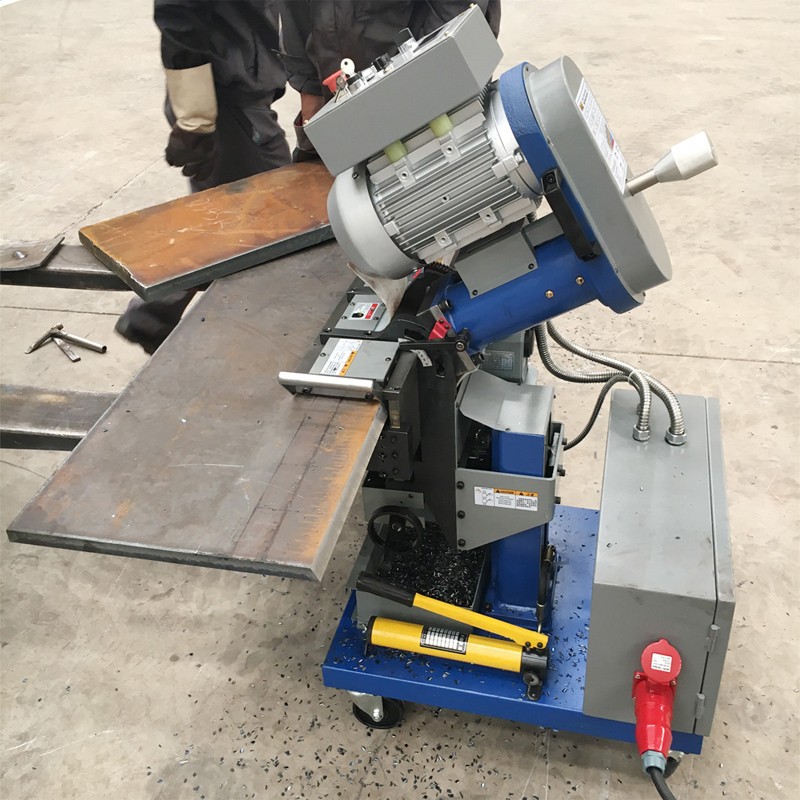

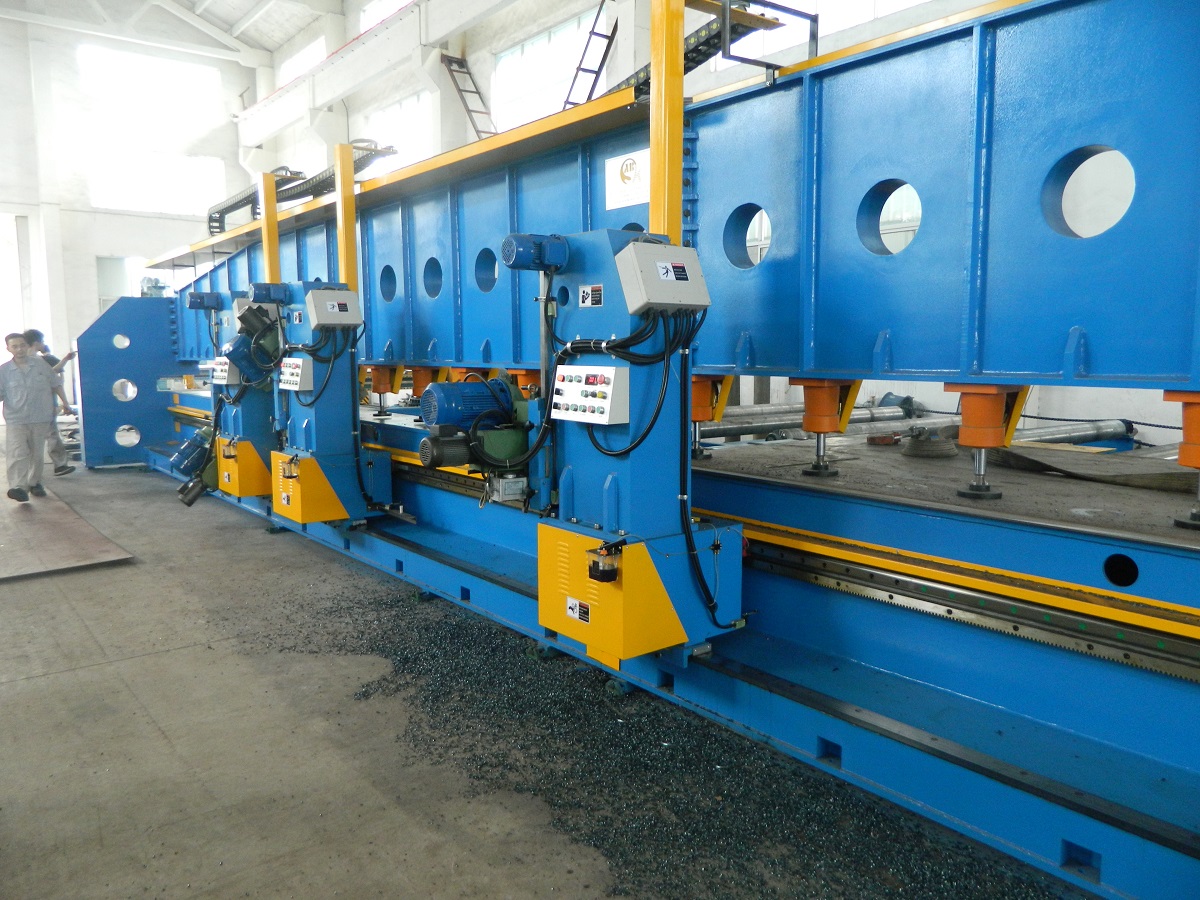

The flat beveling machine is a kind of beveling machine. It is used for deburring and beveling of sheet metal before welding, and the edge of the steel sheet is washed at a desired angle to obtain the groove required for welding. Suitable for steel, cast iron, hard plastic, non-ferrous metals and other materials! The plate beveling machine is a special tool for chamfering the groove on the front end surface of the welding pipe. Flat beveling machine solves the shortcomings such as flame cutting, grinding machine grinding and other operations, such as irregular angle, rough slope and large working noise. Simple, angle standard, smooth surface, etc.
Features:
1. The beveled work piece coming out of the groove can be used for welding without any further processing. The thickness of any cleavable material is 6-30mm, the minimum width is 50mm, and the minimum length is 70mm.
2. The angle of the bevel is in the range of 25 degrees to 45 degrees, and can be adjusted freely without replacing parts.
3. The inlet width can reach 12mm and the maximum groove width can reach 18mm.
4. The pressure bar and the work piece support member can be adjusted up and down within the range marked with the scale.
5. The beveling machine can operate the plate beveling machine vertically or horizontally, and the work pieces to be cut are tightly fixed.
6.Flat beveling machine Can be from the left or right side of the groove. The operation is flexible and convenient.
7. All circuit equipment is installed in a dust-free box and the machine can be operated safely.
Models Available:
|
Model |
PBE-63S |
PBE-63L |
PBE-80 |
PBE-100 |
|
Spindle speed |
1050 r / min |
1050 r / min |
1050 r / min |
1050 r / min |
|
Clamping thickness |
6 ~ 40 mm |
6 ~ 60 mm |
6 ~ 60 mm |
8 ~ 100 mm |
|
Clamping width |
> 100 mm |
> 80 mm |
> 100 mm |
> 100 mm |
|
Processing length |
> 300 mm |
> 300 mm |
> 300 mm |
> 300 mm |
|
Bevel angle |
10 ° ~ 60 ° |
0 ° ~ 90 ° |
0 ° ~ 60 ° |
0 ° ~ 90 ° |
|
Bevel width |
0 ~ 45 mm |
0 ~ 60 mm |
0 ~ 70 mm |
0 ~ 100 mm |
|
Single bevel width |
10 ~ 20 mm |
10 ~ 20 mm |
15 ~ 20 mm |
15 ~ 30 mm |
|
Blade diameter |
63 mm |
63 mm |
80 mm |
100 mm |
|
Blade quantity |
6 pcs |
5 pcs |
5 pcs |
5 pcs |
|
Worktable height |
680 ~ 700 mm |
680 ~ 700 mm |
680 ~ 700 mm |
680 ~ 700 mm |
|
Total power |
3400 W |
3400 W |
4800 W |
6400 W |
