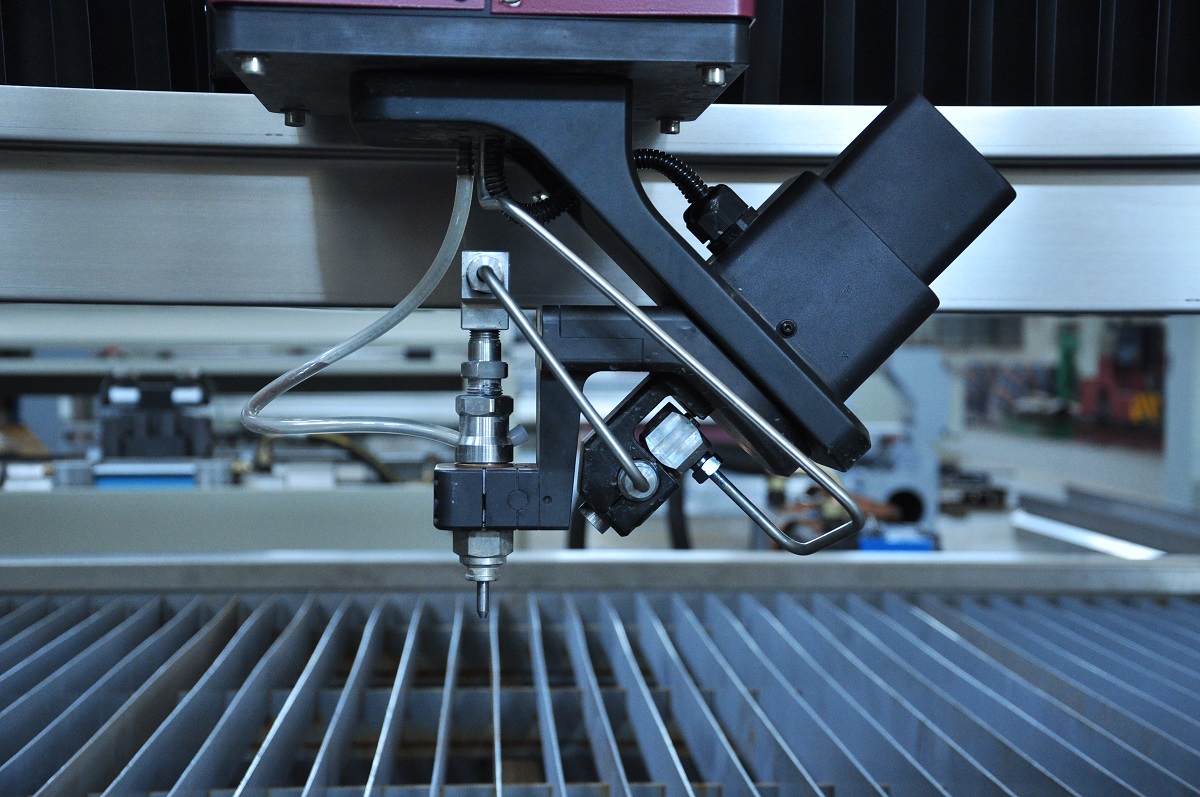

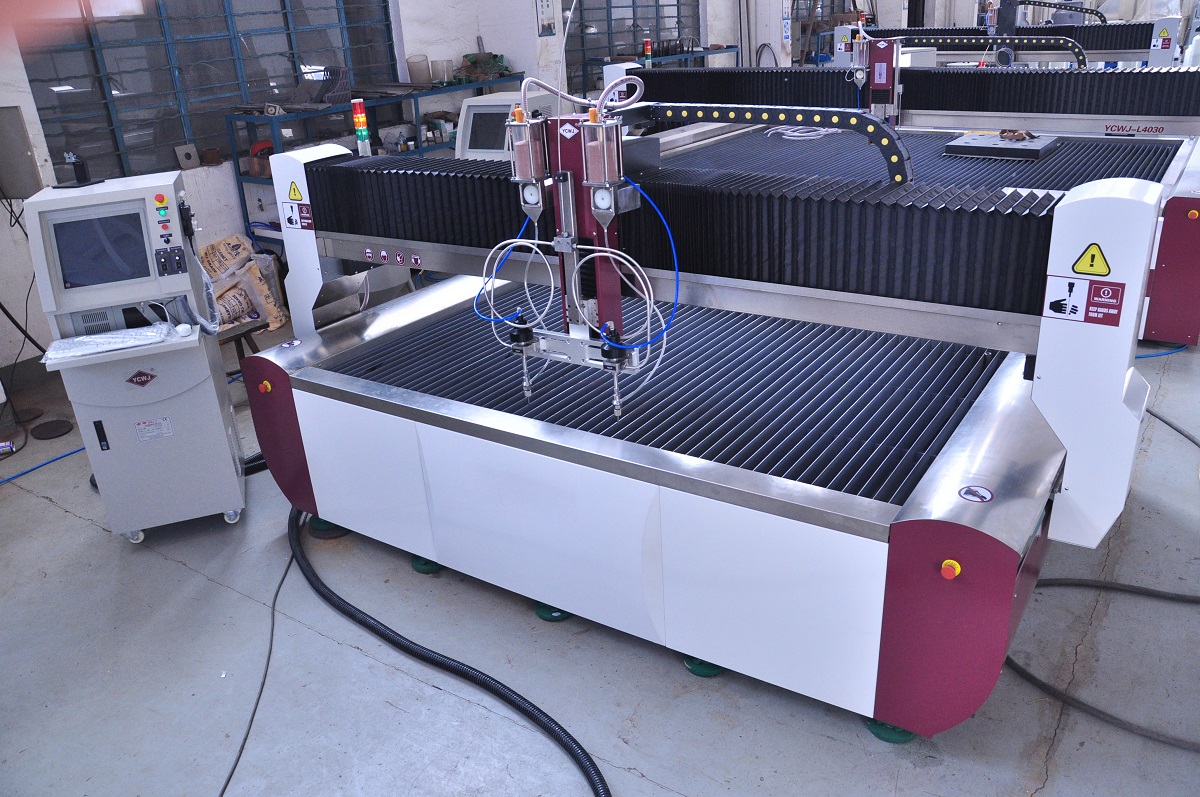

This waterjet cutter is mainly composed of ultra high pressure generator, CNC system, cutting platform, switch and high pressure water cutting head, high-pressure pipeline, automatic for the sand etc.
Waterjet Cutting Machine Features:
1. Numerical control of various complicated patterns;
2. It is cold cut, does not produce thermal deformation or thermal effect;
3. Environmental protection, no pollution, no toxic gases and dust;
4. Waterjet cutter can process a variety of high hardness materials, such as: glass, ceramics, stainless steel, etc., or relatively soft materials, such as: leather, rubber, disposable diapers, etc.;
5. It is the only means of complex processing of complex materials and fragile porcelain materials;
6. Waterjet cutting machine the cut is smooth, no slag, no need for secondary processing;
7. Drilling, cutting and forming work can be completed at one time;
8. Low production costs;
9. High degree of automation;
10. 24 hours of continuous work
Models Available:
|
Integral Gantry Type |
||||||
|
Model |
WAC-1010 |
WAC-1313 |
WAC-2015 |
WAC-3015 |
||
|
Effective Cutting Area |
mm |
1000×1000 |
1300×1300 |
2000×1500 |
3000×1500 |
|
|
Transmission Distance |
X axis |
mm |
1100 |
1400 |
2100 |
3100 |
|
Y axis |
mm |
1100 |
1400 |
1600 |
1600 |
|
|
Z axis |
mm |
180 |
180 |
180 |
180 |
|
|
Water Tank |
Integral type |
Integral type |
Integral type |
Integral type |
||
|
Cutting Accuracy |
mm |
±0.1 |
||||
|
Positioning Accuracy |
mm |
±0.02 |
||||
|
Max Running Speed |
m/min |
0-15m/min (we can make higher speed machinery up to 60m/min which is specialized for only water cutting) |
||||
|
Split Gantry Type |
||||||
|
Model |
WAC-3020 |
WAC-4020 |
WAC-4030 |
WAC-2060 |
||
|
Effective Cutting Area |
mm |
3000×2000 |
4000×2000 |
4000×3000 |
2000×6000 |
|
|
Transmission Distance
|
X axis |
mm |
3100 |
4100 |
4100 |
2100 |
|
Y axis |
mm |
2100 |
2100 |
3100 |
6100 |
|
|
Z axis |
mm |
180 |
180 |
180 |
180 |
|
|
Water Tank |
Split type |
Split type |
Split type |
Split type |
||
|
Cutting Accuracy |
mm |
±0.1 |
||||
|
Positioning Accuracy |
mm |
±0.02 |
||||
|
Max Running Speed |
m/min |
0-15m/min (we can make higher speed machinery up to 60m/min which is specialized for only water cutting) |
||||
