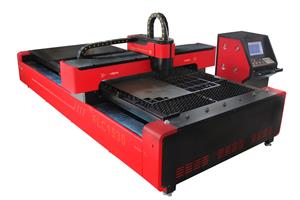

Laser cutting processing replaces traditional mechanical knives with invisible beams. Laser cutter has high precision, fast cutting, is not limited to cutting pattern limitation, saves materials by automatic typesetting, smooth cuts, low processing cost, etc., and will gradually improve or replace Traditional metal cutting process equipment. The mechanical part of the laser cutting machine head has no contact with the work piece, and it will not scratch the surface of the work piece during operation; the laser cutting speed is fast, the slit is smooth and flat, and generally no subsequent processing is required; the cutting heat affected zone is small, the sheet deformation is small, and the slit is narrow ( 0.1mm~0.3mm); no mechanical stress in the incision, no shear burr; high processing precision, good repeatability, no damage to the surface of the material
Laser Cutting Machine Features:
1. Superior edge quality plus high quality cutting head
2. High precision driven box using World Leader-Top Quality Rack & Pinion Drive Technologies and Gearbox
3. World famous IPG laser generator
4. Direct laser control with PWM (Pulse width Modulation)
5. 7.5〃Focus length high pressure lenses with Digital Focus Adjustment
6. Automatic Gas Assist System
7. Advanced Cutting Head anti-collision device
8. Pallet shuttle system with two 2000mm by 6000mm working pallets
9. Windows™ Driven Software with materials Parameters Database
10. Laser cutter is fully interlocked Safety Enclosure on cutting table
Advanced Metal Cutting Post Processor software
Laser Cutting Machine Models Available:
|
Model |
FLC-3015 |
FLC-4020 |
FLC-6020 |
|
Laser source medium |
Fiber |
||
|
Cutting range (L*W) |
3000mm × 1500mm |
4000mm × 2000mm |
6000mm × 2000mm |
|
Z axle stroke |
250 mm |
||
|
Max positioning speed |
120m/min |
||
|
X、X,Y axle Max accelerate speed |
1.5G |
||
|
Work platform size |
4250x2500mm |
||
|
Max height of feeding material |
More than 120mm |
||
|
Cooling form |
Water cooling |
||
|
Laser wavelength |
1070nm |
||
|
Output power of laser source |
1000W (imported) |
1500W (imported) |
2000W (imported) |
|
Min. cutting gap |
≤0.1mm |
≤0.125mm |
≤0.125mm |
|
Positioning accuracy of X, Y, Z |
±0.03 mm |
||
|
Repeated positioning accuracy of X, Y and Z axles |
±0.01mm |
||
|
Thickness of cutting material (according to material) |
0.2-25mm |
||
|
Drive model |
Imported servo motor |
||
|
Power requirement |
380V,50/60Hz |
||
|
Working temperature |
5℃-45℃ |
||
|
Continuous working time |
24 Hours |
||
|
Protection level of power supply |
IP54 |
||
