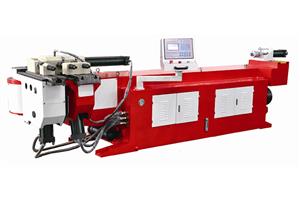

The NCB pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying and repairing of boilers, bridges, ships, furniture, decoration, etc. NCB tube bending machine has many functions, reasonable structure, simple operation, convenient movement, fast installation, etc. Winding bending in a cold state (single layer) or two bending radii (double layer) is widely used in the bending of various pipe fittings and wires in the automotive, air conditioning and other industries.
Feature:
1. Large and medium pipe bending machine, many times booster design, solve the problem of large radius, large angle and thin wall pipe.
2. NCB pipe bending machine Adopting single chip microcomputer control mode of touching operation panel, human, machine dialogue operation, convenient and flexible.
3. Bending angle is used to track and feedback the information of the encoder, high accurate bending angle.
4. With automatic counting and power-off memory function.
5. Equipped with water cooling system to ensure the stability of the machine for a long time.
6. NCB pipe bending machine is beautiful and delicate, and provides the space for the biggest bending pipe.
7. NCB tube bending machine Adopting single chip microcomputer control, the operation setting is simple and easy to understand.
8. Bending angle is used to track and feedback the information, and the bending precision is high.
9. Storaging of multiple sets of processing mode, flexible switching between different specifications.
10. NCB pipe bending machine with automatic counting and power-off memory function.
11. Equipped with hydraulic cooling system to ensure the stability of the machine.
NCB Tube Bending Machine Models Available:
|
Model |
|
18NCB |
28NCB |
38NCB |
42NCB |
50NCB |
63NCB |
76NCB |
89NCB |
|
Max. Bending Capacity |
mm |
￠18×2 |
￠28×2 |
￠38×2 |
￠42×3 |
￠50×2 |
￠63×4 |
￠76×5 |
￠89×10 |
|
Bending Radius Region |
mm |
20-150 |
20-180 |
20-200 |
20-250 |
20-250 |
25-350 |
30-350 |
40-400 |
|
Bending Angle Region |
Degree |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
|
Effective Length Over Mandrel |
mm |
2000 |
2000 |
2000 |
2200 |
2200 |
2500 |
3200 |
4000 |
|
Oil Pressure System Motor |
kw |
2.2 |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
|
Model |
|
100NCB |
114NCB |
120NCB |
129NCB |
140NCB |
159NCB |
168NCB |
219NCB |
|
Max. Bending Capacity |
mm |
￠100×8 |
￠114×12 |
￠120×10 |
￠129×14 |
￠140×14 |
￠159×18 |
￠168×18 |
￠219×18 |
|
Bending Radius Region |
mm |
40-400 |
40-450 |
40-450 |
50-550 |
50-600 |
60-700 |
60-700 |
80-1000 |
|
Bending Angle Region |
Degree |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
|
Effective Length Over Mandrel |
mm |
4000 |
4200 |
4200 |
4200 |
4200 |
5600 |
5600 |
6500 |
|
Oil Pressure System Motor |
kw |
11 |
15 |
15 |
18.5 |
18.5 |
22 |
22 |
30 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
