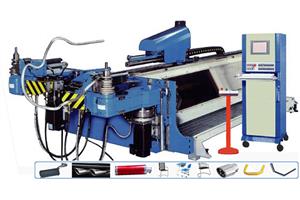

The pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying and repairing of boilers, bridges, ships, furniture, decoration, etc. Tube bending machine has many functions, reasonable structure, simple operation, convenient movement, fast installation, etc. Winding bending in a cold state (single layer) or two bending radii (double layer) is widely used in the bending of various pipe fittings and wires in the automotive, air conditioning and other industries.
Pipe Bending Machine Feature:
1. Multi-axes bending head includes Y(feeding),B(rotating),C(bending),V(bending head vertical movement for die changing),H (Horizontal movement for die changing) are all electrically driven.
2. Standard tube bending machine with 3-stacks of tooling at upper (anticlockwise)station and the other 3-stacks of tooling at lower(clockwise) station to complete multi radius component in one operation without any dies changing and possible zone of interference, which greatly reduce costs and set up time.
3. Pipe bending machine is available to do pushing bending and also draw rotary bending alternatively as programmed, tube bending machine is suitable for a wide range of bending components which with complex modeling to automotive, fashion furniture, complex hydraulic tubing and aerospace, heating pipe…etc.
Models Available:
|
Model |
|
18CNC |
28CNC |
38CNC |
50CNC |
63CNC |
76CNC |
89CNC |
114CNC |
|
Max. Bending Capacity |
mm |
￠18×2 |
￠28×2 |
￠38×2 |
￠50×2 |
￠63×3 |
￠76×3 |
￠89×3 |
￠114×3 |
|
Bending Radius Region |
mm |
20-150 |
20-180 |
20-200 |
20-250 |
25-300 |
30-350 |
40-400 |
40-450 |
|
Bending Angle Region |
Degree |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
|
Effective Length Over Mandrel |
mm |
2000 |
2200 |
2400 |
2400 |
2600 |
2600 |
3000 |
3200 |
|
Oil Pressure System Motor |
kw |
2.2 |
2.2 |
4 |
4 |
5.5 |
5.5 |
7.5-11 |
11-15 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
