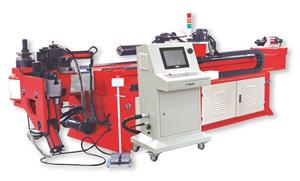

The CNC pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying and repairing of boilers, bridges, ships, furniture, decoration, etc. CNC tube bending machine has many functions, reasonable structure, simple operation, convenient movement, fast installation, etc. Winding bending in a cold state (single layer) or two bending radii (double layer) is widely used in the bending of various pipe fittings and wires in the automotive, air conditioning and other industries.
Feature:
1. Using the screen display, the language can be selected according to the needs of the customer, and the CNC pipe bending machine operation is easy.
2. RS232 port can be connected to other computer devices to increase data memory capacity.
3. XYZ space coordinate values can be converted to FPB machining values.
4. The three-axis wheel entry accuracy is 0.1 degrees and 0.1 mm.
5. Processing count function.
6. Reciprocating feeding function: When the core processing is not carried out, the infinite tube length can be processed (up to 32 bends) is not restricted by the machine. If PC software is selected, CNC pipe bending machine can be up to 50 bends.
7. CNC tube bending machine with Automatic core lubrication function (optional).
8. Three-axis synchronous parameters can be set to save working time.
9. Single layer film, double layer film, multiple choices.
10. Stylized automatic detection system to prevent human error operation and interference avoidance.
11. Manual or fully automatic operation mode can be selected as needed.
12. Memory data can be saved for more than three years in the event of a power outage.
13. Self-diagnosis, if there is a fault, CNC pipe bending machine can be automatically displayed on the CRT screen.
14. The computer adds interference parameter points and multiple feeding modes, so that the elbow with bending interference can be completed at one time.
CNC Tube Bending Machine Models Available:
|
Model |
|
18CNC |
28CNC |
38CNC |
42CNC |
50CNC |
63CNC |
76CNC |
89CNC |
|
Max. Bending Capacity |
mm |
￠18×2 |
￠28×2 |
￠38×2 |
￠42×3 |
￠50×2 |
￠63×4 |
￠76×5 |
￠89×10 |
|
Bending Radius Region |
mm |
20-150 |
20-180 |
20-200 |
20-250 |
20-250 |
25-350 |
30-350 |
40-400 |
|
Bending Angle Region |
Degree |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
|
Effective Length Over Mandrel |
mm |
1250 |
2200 |
2400 |
2400 |
2400 |
2600 |
2600 |
3000 |
|
Oil Pressure System Motor |
kw |
2.2 |
2.2 |
4 |
4 |
5.5 |
7.5 |
7.5 |
11 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
|
Model |
|
100CNC |
114CNC |
120CNC |
129CNC |
140CNC |
159CNC |
168CNC |
219CNC |
|
Max. Bending Capacity |
mm |
￠100×8 |
￠114×12 |
￠120×10 |
￠129×14 |
￠140×14 |
￠159×18 |
￠168×18 |
￠219×18 |
|
Bending Radius Region |
mm |
40-400 |
40-450 |
40-450 |
50-550 |
50-600 |
60-700 |
60-700 |
80-1000 |
|
Bending Angle Region |
Degree |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
0-190 |
|
Effective Length Over Mandrel |
mm |
3000 |
3200 |
3200 |
3500 |
3500 |
4500 |
4500 |
5000 |
|
Oil Pressure System Motor |
kw |
11 |
15 |
15 |
18.5 |
18.5 |
22 |
22 |
30 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
