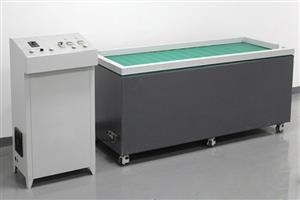

Magnetic Polishing Machine

The magnetic polishing machine is reforming and innovating on the shortcomings and defects of the traditional grinding machine, so that the inner hole, the dead angle and the small gap of the precision metal work piece play a significantly better effect of polishing and removing burrs. The magnetic field force of the magnetic polisher machine is transmitted to the stainless steel grinding needle to make the work piece rotate at a high frequency; finally, the precise work piece is quickly removed to remove burrs and dirt.

Feature:

1. Magnetic polishing machine is Excellent and quick removal of burrs around the work piece. Including the small inner hole, tube hole, and the dead angle of the seam.

2. The work piece after grinding does not affect the original accuracy; the shape and size will not change. The surface roughness value can reach Ra0.1-Ra0.01, and the surface of the magnetic polisher machine exhibits a bright metallic luster.

3. The time is short. Each processing time is 5-20 minutes.

4. The magnetic polishing machine operation is convenient and simple; the work piece is processed in one batch, the cost is extremely low; no pollution; the stainless steel needle is a permanent abrasive.

5. light iron metal, non-ferrous metals, hard plastics and other precision parts finished, remove the roughing, chamfering, polishing, washing and other precision grinding work once completed.

6. Irregular parts, holes, tubes, dead ends, cracks, etc. can be ground.

7. Fast processing speed, easy and safe operation, low cost, no need for any consumables.

8. The finished product will never be deformed after processing, and will never damage the surface, and will not affect the precision.

9. The magnetic polishing machine is complete, can design special models.



Magnetic Polisher Machine Models Available:

Model

Max polish size

Max polish weight

Power

MPM360

500mm*500mm

8kg

360W-2800W

MPM500

650mm*650mm

15kg

500W-3800W

MPM800

750mm*620mm

18kg

800W-3500W

MPM1200

1200mm*500mm

18kg

1200W-4500W

MPM1500

1500mm*620mm

30kg

1500W-6500W

MPM2500

2400mm*620mm

45kg

2500W-10000W
