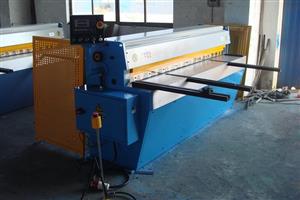

The high accuracy shearing machine is used to straight cut sheet metal, metal materials should be mild steel, ultimate tensile strength less than 450N/mm2, non-metallic materials including rubber, plastic, etc., Hot shear plate temperature is less than 50 ℃, the CNC shearing machine shearing only for one time at full load, if shear a higher ultimate tensile strength sheet metal, the shear thickness should be quite reduced. This high accuracy shearing machine is suitable for general machinery, electrical, electronics, automobile, light industry and other industries.
Features:
1. The CNC shearing machine shearing frame is whole steel welded, compact structure, light weight, good rigidity.
2. Blade adapter trajectory forward to lower blade vertical support surface to obtain better shear section. The upper blade adopts jacking screw adjustment, reduced the notches burrs to lowest degree.
3. Pressing device adopts belleville spring, pressure plate and presser foot have non-slip mat, with high pressure force, and will not damage the surface of the sheet.
4. The high accuracy shearing machine adopts completely separate enclosed gear box, directly mounted on the main axle rotation, compact structure, good gear lubrication, low noise, long life.
5. The CNC shearing machine shearing does not have a clutch and flywheel, adopts electromagnetic brake motor driven shear, and reduces the motor empty running time, saving energy.
Models Available:
|
Model |
2.5×2500 |
3.5×1250 |
3.5×1300 |
3.5×1500 |
3.2×2000 |
3.2×2200 |
3.2×2500 |
2.5×3000 |
|
|
|
Shearing thickness |
0.5~2.5 |
0.7~3.5 |
0.7~3.5 |
0.7~3.5 |
0.6~3.2 |
0.6~3.2 |
0.6~3.2 |
0.7~2.5 |
mm |
|
|
Shearing width |
2500 |
1250 |
1500 |
1500 |
2000 |
2200 |
2500 |
3000 |
mm |
|
|
Shearing angle |
1° |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
1°30′ |
|
|
|
Upper blade adapter number of strokes |
47 |
min-1 |
||||||||
|
Number of strokes at a time |
10 |
min-1 |
||||||||
|
Working table height above the ground |
800 |
mm |
||||||||
|
Motor |
Model |
YEJ132S-4 |
YEJ132M-4 |
YEJ160M-4 |
|
|||||
|
Power |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
kW |
||||
|
Rotation rate |
1380 |
rpm |
||||||||
|
Dimension |
Length |
3124 |
1860 |
1860 |
2060 |
3124 |
2624 |
3124 |
3599 |
mm |
|
Width |
2210 |
2210 |
2210 |
2210 |
2448 |
mm |
||||
|
Height |
1180 |
1180 |
1180 |
1180 |
1290 |
mm |
||||
|
Weight |
2000 |
1440 |
1500 |
1720 |
1900 |
2100 |
2300 |
2500 |
kg |
|
