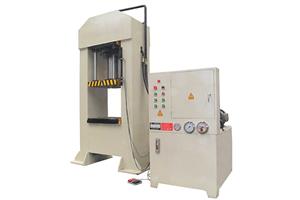

Single Action Stretching

Single action stretching press is suitable for various stamping processes such as drawing, bending, forming, blanking, flanging, etc., single hydraulic stretching press especially suitable for the following fields: auto parts, household appliances, kitchen appliances. Others: tractors, motorcycles, aerospace, aviation.

Inquiry

Product Details
Inquire Now

Feature:

1. Single hydraulic stretching press optimized by computer design, the four-column structure is simple, economical and practical;

2. The frame structure of the single action stretching press has good rigidity, high precision and strong anti-offset capability;

3. The hydraulic control system adopts the plug-in integrated system, which has reliable action, long service life and small hydraulic impact, which reduces the connecting pipeline and leakage point;

4. Single action stretching press adopts imported PLC-controlled electrical system, which is compact in structure, sensitive and reliable in operation, and convenient to use and maintain. There are three kinds of operation modes, such as adjustment, manual and semi-automatic operation modes, and fixed pressure and constant pressure.

5. The single hydraulic stretching press bottom beam is equipped with a hydraulic pad. Through the operation panel selection, the hydraulic pad can realize three working cycles: ejection, no ejection and hydraulic pressure.

Models Available:

Model			100T	200T	315T	400T	500T	630T	800T	1000T	1250T	1500T
Nominal force		KN	1000	2000	3150	4000	5000	6300	8000	10000	12500	15000
Return force		KN	100	450	600	650	900	1200	1200	1800	2500	3200
Max opening height		mm	900	1100	1250	1350	1500	1500	1500	1500	1800	1800
Hydraulic pad nominal force		mm	200	630	1600	2000	2000	2000	3000	3000	3500	4000
Hydraulic pad stoke		mm	200	250	300	350	350	350	350	350	400	400
Slider stoke		mm	600	700	800	800	900	900	900	900	900	900
Slider forming speed	Empty	mm/s	120	100	100	100	100	80	80	80	80	80
	Work	mm/s	14	15	10	9	14	10	16	12	9	14
	Return	mm/s	120	70	60	50	70	55	90	65	45	70
Hydraulic pad forming speed	Eject	mm/s	50	40	20	15	30	30	30	30	30	30
Hydraulic pad forming speed	Return	mm/s	100	80	40	30	60	60	60	60	60	60
Worktable size	L-R	mm	850	1000	1200	1200	1500	3000	3000	3000	3000	3000
Worktable size	F-B	mm	600	800	1200	1200	1200	1600	1800	2000	2000	2000
Hydraulic pad size	L-R	mm	650	600	800	800	1000	2200	2200	2200	2200	2200
Hydraulic pad size	F-B	mm	400	500	800	800	800	1200	1250	1500	1500	1500
Worktable load		T					15	15	15	15	20	20
Motor power		kW	7.5	15	22	22	44	50	60	70	80	160
