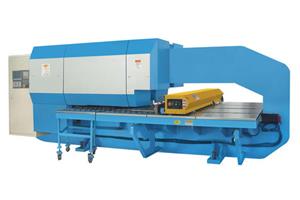

Servo turret punch press is widely used in the stamping processing of machinery, electrical appliances, instruments, screens, hardware, all kinds of metal plates, boxes, cabinets, etc., using a single punching method and step punching to punch out holes and parts of various shapes and sizes. Servo type turret punch press is especially suitable for multi-variety medium and small batch or single piece sheet metal stamping.
Feature:
1. Servo turret punch press adopts imported numerical control system and advanced servo module to realize five-axis linkage, fast response and high precision.
2. The X-axis of the servo type turret punch press adopts double-rail guide and gear rack transmission, which has high speed and high precision and reaches international standards.
3. Five-axis full electric control, to achieve stamping, stretching, roll forming and other processes, suitable for precision sheet metal processing.
4. Servo turret punch press is energy saving, standby no electricity consumption, effectively reduce energy consumption; choose soft mode, quiet and environmentally friendly.
Servo Type Turret Punch Press Models Available:
|
Model |
STP1225 |
STP1240 |
STP1250 |
STP1540 |
STP1550 |
|
|
Nominal force |
KN |
200/300 |
||||
|
Processing sheet size |
mm |
1250×2500 |
1250×4000 |
1250×5000 |
1500×4000 |
1500×5000 |
|
Slider stroke |
mm |
32 |
||||
|
Max sheet thickness |
mm |
6.35 |
||||
|
Max diameter of one punch |
mm |
φ88.9 |
||||
|
Modulus |
Pcs |
30 |
||||
|
Punching precision |
mm |
±0.10 |
||||
|
Punching frequency |
hpm |
600 |
||||
|
Sheet moving speed |
m/min |
106 |
||||
|
Machine structure |
|
Closed-type |
||||
|
Control axis number |
Pcs |
5 |
||||
|
Turret speed |
r/min |
30 |
||||
|
Rotating station punch diameter |
mm |
φ88.9 |
||||
|
Total power |
kW |
50 |
||||
|
Max workpiece weight |
kg |
156 |
156 |
210 |
210 |
235 |
|
Air pressure |
MPa |
0.55 |
||||
