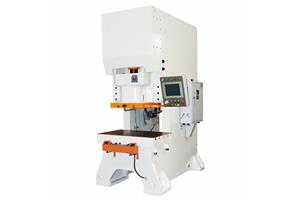

The servo open press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system of the servo table press, so that the blank obtains a certain shape.
Feature:
1. The speed in the process can be arbitrarily set and changed, and the ease of use of production is unparalleled.
2. Servo open press Compared with the traditional press, the production efficiency can be significantly improved by speeding up the return stroke.
3. The stroke height and movement sequence can be programmed, so production flexibility.
4. Optimize the movement sequence to improve and extend the quality of parts and molds.
5. Efficient drive solutions reduce energy consumption.
6. Servo table press compared to conventional presses, the number of mechanical parts is smaller and easier to maintain.
7. Servo open press Equipped with the hand wheel fine adjustment function can greatly shorten the test time.
Servo Table Press Models Available:
|
Model |
80T |
100T |
125T |
160T |
200T |
250T |
|
|
Nominal force (KN) |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
|
|
Nominal force stroke (mm) |
4 |
4 |
5 |
6 |
6 |
6 |
|
|
Slider stroke length (mm) |
160 |
180 |
180 |
200 |
200 |
220 |
|
|
Slide stroke times (times / min) |
50 |
45 |
35 |
35 |
30 |
30 |
|
|
Maximum mold height (mm) |
320 |
330 |
350 |
400 |
450 |
500 |
|
|
Mold height adjustment amount (mm) |
80 |
90 |
90 |
100 |
110 |
120 |
|
|
Distance between columns (mm) |
310 |
330 |
350 |
400 |
430 |
450 |
|
|
Throat depth (mm) |
730 |
850 |
870 |
950 |
1130 |
1220 |
|
|
Slider bottom size (mm) |
F-B |
540 |
620 |
620 |
700 |
880 |
950 |
|
L-R |
460 |
520 |
520 |
580 |
650 |
700 |
|
|
Mold hole size (mm) |
Diameter |
50 |
70 |
70 |
70 |
70 |
70 |
|
Depth |
70 |
80 |
90 |
100 |
100 |
130 |
|
|
Workbench size (mm) |
F-B |
950 |
1060 |
1100 |
1175 |
1390 |
1500 |
|
L-R |
600 |
640 |
680 |
760 |
840 |
880 |
|
|
Thickness |
180 |
180 |
200 |
200 |
250 |
270 |
|
|
Machine height (mm) |
900 |
900 |
900 |
900 |
1000 |
1000 |
|
