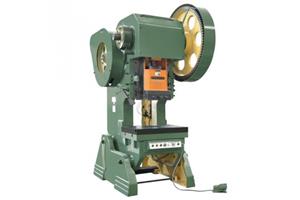

Open Tilting Press

The open tilting press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system of the open type tilting power press, so that the blank obtains a certain shape.

Inquiry

Product Details
Inquire Now

Feature:

1. Open tilting press adopts rigid transfer key clutch, which has simple structure, convenient operation and maintenance, and adopts helical gear transmission, which is stable in operation and small in impact.

2. The 80T tonnage press adopts the pneumatic double balance cylinder structure, the balance force fluctuation is small, balances the weight of the slider and the upper mold, and avoids the shaking of the machine tool caused by the above weight.

3. Open type tilting power press can prevent the impact and noise caused by the reverse force of the gear in the transmission, can eliminate the gap between the connecting rod and the slider, and reduce the impact and wear of the stressed parts.

4. Open tilting press can prevent accidents caused by the falling of the slider when the brake is broken or the connecting rod is broken.

Models Available:

Model				25T	40T	63T	80T	100T	125T
Nominal force			KN	250	400	630	800	1000	1250
Nominal force stroke			mm	2.5	6	6	7	7	8
Slider stroke			mm	65	90	110	120	140	150
Stroke numbers			times/min	55	45	50	38	38	38
Closed height			mm	270	320	360	440	480	500
Closed height adjustment			mm	55	65	80	90	100	100
Slider center to body distance			mm	200	250	260	350	380	390
Column distance			mm	270	340	350	450	560	550
Slider bottom size	L-R		mm	250	300	430	540	540	400
Slider bottom size	F-B		mm	220	260	360	480	480	360
Mold hole size	Diameter		mm	40	50	60	60	60	50
Mold hole size	Depth		mm	60	70	75	75	75	70
Worktable size	L-R		mm	610	760	950	1080	1100	860
Worktable size	F-B		mm	400	480	650	710	720	570
Drop hole diameter			mm	120	150	150	200	220	180
Workbench thickness			mm	50	65	80	100	120	130
Maximum tilt angle			°	30	30	20	20	15	13
Workbench height			mm	800	850	810	850	850	860
Machine dimension		L-R	mm	1460	1810	2060	2404	2504	1958
		F-B	mm	1058	1350	1715	1790	1790	1500
		Height	mm	2225	2740	3290	3625	3715	2868
Anchor bolt distance		L-R	mm	1020	1180	1360	1550	1710	1300
Anchor bolt distance		F-B	mm	650	850	1010	1130	1110	920
Motor power			kW	2.2	5.5	5.5	7.5	11	11
