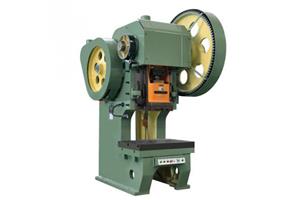

The open fixed table press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system of the open type table press machine, so that the blank obtains a certain shape.
Feature:
1. Open fixed table press adopts steel plate welding body, which has good rigidity, stable precision, compact structure and beautiful appearance.
2. The double-turn key inter-type rigid clutch can effectively overcome the stamping rebound phenomenon.
3. The products are equipped with spring-type slider balancing device to reduce the load on the slider, open type table press machine which can prevent the transmission system from being subjected to the force in the reverse direction and make the movement extremely stable.
4. Closed height (non-standard) has a large degree of freedom of choice and is selected when the user orders.
5. The slider is equipped with a collapse-type overload protection device, which is sensitive and reliable, to protect the safety of machine parts and molds of the open type table press machine.
Open fixed table press Models Available:
|
Model |
40T |
63T |
80T |
100T |
125T |
160T |
|
|
Nominal force (KN) |
400 |
630 |
800 |
1000 |
1250 |
1600 |
|
|
Nominal force stroke (mm) |
6 |
8 |
8 |
8 |
8 |
8 |
|
|
Slider stroke length (mm) |
80 |
120 |
120 |
140 |
160 |
40/160 |
|
|
Slide stroke times (times / min) |
45 |
55 |
55 |
40 |
40 |
42 |
|
|
Maximum mold height (mm) |
265 |
255 |
280 |
300 |
320 |
330 |
|
|
Mold height adjustment amount (mm) |
65 |
90 |
80 |
100 |
100 |
120 |
|
|
Distance between columns (mm) |
340 |
390 |
360 |
380 |
380 |
480 |
|
|
Throat depth (mm) |
250 |
260 |
290 |
320 |
350 |
375 |
|
|
Slider bottom size (mm) |
F-B |
260 |
280 |
300 |
310 |
325 |
370 |
|
L-R |
300 |
320 |
340 |
365 |
385 |
510 |
|
|
Workbench size (mm) |
F-B |
460 |
480 |
540 |
600 |
650 |
710 |
|
L-R |
700 |
710 |
800 |
900 |
950 |
1120 |
|
|
Thickness |
65 |
90 |
90 |
90 |
100 |
120 |
|
|
Mold hole size (mm) |
Diameter |
50 |
50 |
50 |
50 |
50 |
80 |
|
Depth |
70 |
75 |
85 |
80 |
80 |
80 |
|
|
Motor power (kW) |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
15 |
|
|
Clutch form |
Rigid clutch |
||||||
|
Machine dimension (mm) |
F-B |
1685 |
1750 |
1815 |
1950 |
2010 |
2235 |
|
L-R |
1330 |
1362 |
1440 |
1610 |
1610 |
1340 |
|
|
Machine height (mm) |
2220 |
2490 |
2565 |
2680 |
2800 |
3082 |
|
