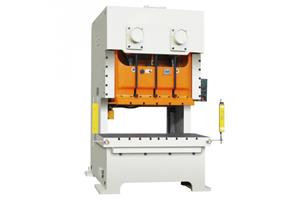

The open double point press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system of the open back double point press, so that the blank obtains a certain shape.
Feature:
1. Open double point press is suitable for large sheet metal stamping and shallow drawing process, progressive die and multi-station stamping process;
2. The open back double point press whole steel plate is welded to the fuselage and has a beautiful appearance;
3. Using the crank-link mechanism reverse rotation mode to completely eliminate the lateral force;
4. The slider is guided by six sides, and the long guide rail has high guiding precision;
5. The number of strokes of the slider can be adjusted to meet the working requirements of different parts and components of the open double point press;
6. Dry pneumatic friction clutch (integral), low noise, easy maintenance;
7. The transmission gear is immersed in oil lubrication, the transmission is stable and low noise;
8. Hydraulic overload protection device, overload automatic emergency stop, protect the pressure machine and mold safety for the open back double point press;
9. The electronic control system is controlled by PLC.
Models Available:
|
Model |
110T |
160T |
200T |
250T |
315T |
||
|
Nominal force (kN) |
1100 |
1600 |
2000 |
2500 |
3150 |
||
|
Nominal force stroke (mm) |
5 |
6 |
7 |
7 |
8 |
||
|
Slider stroke length (mm) |
180 |
200 |
230 |
250 |
250 |
||
|
Slide stroke times (times / min) |
35-55 |
30-50 |
25-45 |
20-40 |
20-35 |
||
|
Maximum mold height (mm) |
400 |
450 |
500 |
550 |
550 |
||
|
Mold height adjustment amount (mm) |
90 |
100 |
110 |
120 |
120 |
||
|
Distance between columns (mm) |
350 |
390 |
430 |
470 |
470 |
||
|
Throat depth (mm) |
1470 |
1610 |
1960 |
2210 |
2270 |
||
|
Slider bottom size (mm) |
F-B |
520 |
580 |
650 |
700 |
700 |
|
|
L-R |
1360 |
1500 |
1850 |
2000 |
2100 |
||
|
Workbench size (mm) |
F-B |
680 |
760 |
650 |
920 |
920 |
|
|
L-R |
1880 |
2040 |
2420 |
2600 |
2700 |
||
|
Motor power (kW) |
15 |
22 |
22 |
30 |
37 |
||
|
Clutch form |
Dry pneumatic |
||||||
|
Machine dimension (mm) |
F-B |
1860 |
2150 |
2310 |
2650 |
2890 |
|
|
L-R |
2050 |
2250 |
2670 |
2950 |
2960 |
||
