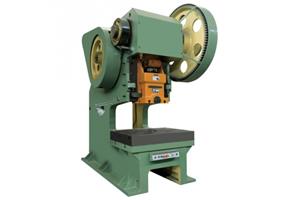

The open deep throat fixed table press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system, so that the blank obtains a certain shape.
Feature:
1. The open type fixed table press steel plate is welded to the fuselage, the throat depth is increased, and the working space is large:
2. Open deep throat fixed table press adopting a crankshaft transverse structure;
3.100T and below tonnage presses are rigid clutches, manual mode adjustment, scale display, and conventional electrical control;
4.125T and above tonnage are dry pneumatic clutch, electric mode adjustment, digital display, PLC control of open type fixed table press electrical system.
Models Available:
|
Model |
40T |
63T |
80T |
100T |
125T |
160T |
200T |
|||
|
Nominal force (kN) |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
|||
|
Nominal force stroke (mm) |
4 |
8 |
6 |
6 |
6 |
6 |
6 |
|||
|
Slider stroke length (mm) |
80 |
120 |
120 |
140 |
160 |
160 |
180 |
|||
|
Slide stroke times (times / min) |
45 |
55 |
55 |
40 |
45 |
45 |
35 |
|||
|
Maximum mold height (mm) |
265 |
255 |
280 |
300 |
320 |
360 |
370 |
|||
|
Mold height adjustment amount (mm) |
65 |
90 |
80 |
100 |
120 |
120 |
120 |
|||
|
Distance between columns (mm) |
650 |
700 |
700 |
750 |
750 |
750 |
750 |
|||
|
Throat depth (mm) |
260 |
280 |
300 |
310 |
500 |
550 |
550 |
|||
|
Slider bottom size (mm) |
F-B |
300 |
320 |
340 |
365 |
640 |
700 |
720 |
||
|
L-R |
460 |
480 |
540 |
600 |
620 |
710 |
760 |
|||
|
Workbench size (mm) |
F-B |
700 |
710 |
800 |
900 |
1100 |
1200 |
1200 |
||
|
L-R |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
|||
|
Mold hole size (mm) |
Diameter |
50 |
50 |
50 |
50 |
50 |
65 |
65 |
||
|
Depth |
70 |
75 |
80 |
80 |
70 |
80 |
90 |
|||
|
Motor power (kW) |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
15 |
|||
|
Clutch form |
Rigid clutch |
Dry pneumatic |
||||||||
|
Machine dimension (mm) |
F-B |
1965 |
2250 |
2450 |
2775 |
2880 |
3000 |
3100 |
||
|
L-R |
1180 |
1350 |
1400 |
1610 |
1700 |
1900 |
2190 |
|||
