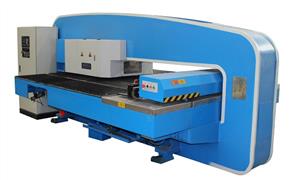

Hydraulic turret punch press is widely used in the stamping processing of machinery, electrical appliances, instruments, screens, hardware, all kinds of metal plates, boxes, cabinets, etc., using a single punching method and step punching to punch out holes and parts of various shapes and sizes. Turret punching machine is especially suitable for multi-variety medium and small batch or single piece sheet metal stamping.
Feature:
1. Hydraulic turret punch press adopts 4-axis CNC punching machine special system and digital AC servo motor, which is faster and more stable.
2. The closed body of the steel plate is welded by the whole tempering, and the rigidity is good and the deformation is small.
3. High-level digital hydraulic main drive system with adjustable speed and stroke; equipped with secondary positioning system for dead zone-free machining.
4. The transmission system adopts high-precision, large-lead ball screw and linear guide of international brand, with high precision and good performance.
5. The main pneumatic components, electrical components and hydraulic components adopt internationally renowned brand products to make the turret punching machine performance more perfect.
6. Adopt standard casting integrated thick turret mold plate and standard thick turret international common mold.
7. Hydraulic turret punch press equipped with automatic centralized lubrication device, which reduces the friction between the movement pairs and improves the service life of the machine;
8. Rotary station function effectively solves the difficulty of cutting at irregular angles.
Turret Punching Machine Models Available:
|
Model |
HTP1225 |
HTP1240 |
HTP1250 |
HTP1540 |
HTP1550 |
|
|
Nominal force |
kN |
300 |
300 |
300 |
300 |
300 |
|
Processing sheet size |
mm |
1250×2500 |
1250×4000 |
1250×5000 |
1500×4000 |
1500×5000 |
|
Max workpiece weight |
kg |
156 |
156 |
210 |
235 |
235 |
|
Sheet moving speed |
m/min |
106 |
106 |
106 |
106 |
106 |
|
Max sheet thickness |
mm |
6.35 |
6.35 |
6.35 |
6.35 |
6.35 |
|
Max punch diameter |
mm |
φ88.9 |
φ88.9 |
φ88.9 |
φ88.9 |
φ88.9 |
|
Modulus |
Pcs |
32 |
32 |
32 |
32 |
32 |
|
Punching precision |
mm |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
Punching frequency |
hpm |
600 |
600 |
600 |
600 |
600 |
|
Machine structure |
|
Closed type |
Closed type |
Closed type |
Closed type |
Closed type |
|
Throat depth |
mm |
1275 |
1275 |
1275 |
1520 |
1520 |
|
Control axis number |
Pcs |
4 |
4 |
4 |
4 |
4 |
|
Turret speed |
r/min |
30 |
30 |
30 |
30 |
30 |
|
Rotating station punch diameter |
mm |
φ50.8 |
φ50.8 |
φ50.8 |
φ50.8 |
φ50.8 |
|
Total power |
kW |
25 |
25 |
25 |
25 |
25 |
|
Air pressure |
MPa |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
