The open press generally refers to a crank press, which is a mechanically driven forging machine that transmits the motion and energy of the motor to the working mechanism through the transmission system, so that the blank obtains a certain shape.
Feature:

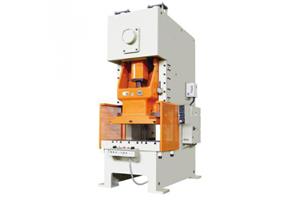

The high performance open fixed table press is a new-generation universal press designed with a new concept. Open type press machine is the first choice to replace the ordinary model, and its structural performance advantage is obvious. Steel plate welded body, good rigidity, stable precision, longitudinal crankshaft, compact structure, beautiful appearance, all transmission components are placed in the high performance open fixed table press body, high protection level, safe and reliable use, dry combination pneumatic friction clutch, smooth joint The action is sensitive and the noise is low. The slider adopts rectangular six-sided extension rails, guide plate bronze panel, high guiding precision, configurable automatic feeding shaft device, photoelectric protection device, open type press machine can be equipped with various automatic equipments, electrical control using two hands, pedal two ways, in line with the punch safety standard.
High Performance Open Fixed Table Press Models Available:
|
Model |
40T |
63T |
80T |
100T |
125T |
160T |
200T |
250T |
315T |
||
|
Nominal force (kN) |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
||
|
Nominal force stroke (mm) |
4 |
6 |
6 |
8 |
8 |
8 |
10 |
8 |
8 |
||
|
Slider stroke length (mm) |
100 |
120 |
140 |
140 |
160 |
160 |
180 |
180 |
200 |
||
|
Slide stroke times (times / min) |
55 |
55 |
55 |
50 |
45 |
45 |
35 |
35 |
25 |
||
|
Maximum mold height (mm) |
280 |
280 |
300 |
320 |
320 |
380 |
400 |
420 |
450 |
||
|
Mold height adjustment amount (mm) |
90 |
90 |
100 |
100 |
120 |
120 |
120 |
120 |
150 |
||
|
Distance between columns (mm) |
480 |
480 |
530 |
580 |
660 |
680 |
740 |
780 |
960 |
||
|
Throat depth (mm) |
250 |
260 |
290 |
320 |
325 |
375 |
400 |
425 |
450 |
||
|
Slider bottom size (mm) |
F-B |
320 |
350 |
420 |
480 |
500 |
550 |
580 |
610 |
680 |
|
|
L-R |
400 |
460 |
520 |
560 |
640 |
720 |
740 |
1040 |
950 |
||
|
Workbench size (mm) |
F-B |
460 |
480 |
550 |
600 |
620 |
760 |
800 |
800 |
900 |
|
|
L-R |
700 |
780 |
900 |
950 |
1100 |
1200 |
1400 |
1600 |
1600 |
||
|
Thickness |
65 |
90 |
90 |
110 |
115 |
135 |
150 |
170 |
200 |
||
|
Mold hole size (mm) |
Diameter |
50 |
50 |
50 |
50 |
50 |
65 |
70 |
80 |
80 |
|
|
Depth |
60 |
70 |
70 |
70 |
70 |
90 |
100 |
115 |
120 |
||
|
Motor power (kW) |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
22 |
30 |
||
|
Clutch form |
Dry pneumatic |
||||||||||
|
Machine dimension (mm) |
F-B |
1185 |
1400 |
1550 |
1750 |
1850 |
2270 |
2310 |
2858 |
2820 |
|
|
L-R |
800 |
1100 |
1200 |
1240 |
1450 |
1490 |
1650 |
1830 |
1900 |
||
|
Machine height (mm) |
2215 |
2545 |
2700 |
2910 |
3010 |
3200 |
3530 |
3620 |
4290 |
||
