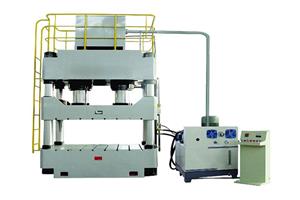

Double Action Stretching

The double-acting hydraulic press has low energy consumption, high efficiency and novel style. Double action stretching press is equipped with safety protection device, automatic counting function and two-stage speed control of movable beam: fast no-load, slow-moving formwork and stretching. The master cylinder and the pressure cylinder have the lower limit protection, and the upper and lower limit stroke positions are simple, convenient and quick.

Inquiry

Product Details
Inquire Now

Feature:

1. Double-acting hydraulic press is mainly used for thin plate stretching, bending, forming and other processes, and can also be used for plastic pressing, cold extrusion bending, forming correction and press fitting. The double-acting hydraulic press's crimping cylinder can be used as a buffer device, and Double action stretching press can also be used for blanking and punching. The working pressure of each chamber can be adjusted separately under the pressure set by the system. In order to ensure the quality of the drawing and crimping, a pressure maintaining system for the crimping cylinder is added.

2. The working pressure, pressing speed and stroke of the double-acting hydraulic press can be adjusted within the specified range as required.

3. The double-acting hydraulic press has independent power mechanism and electrical system, and adopts centralized control of buttons, which can realize three operation modes: manual, semi-automatic and automatic. In the semi-automatic and automatic operation mode, Double action stretching press can be divided into three working states: the ejection cylinder does not eject, the positive stretching and the reverse stretching, and the two pressing modes of constant pressure and fixed stroke can be realized.

Models Available:

Model			40/63	63/100	200/300	315/400	400/630	500/800	630/1030	1200/2000	2000/2600
Nominal force		KN	630	1000	3000	4000	6300	8000	10300	20000	26000
Tensile force		KN	400	630	2000	3150	4000	5000	6300	12000	20000
Blanking force		KN	300	400	1000	800	2300	3000	4000	8000	6000
Ejection force		KN	190	190	400	630	1000	1000	2000	4000	1000
Max liquid pressure		Mpa	25	25	25	25	25	25	25	25	25
Stretch slider stroke		mm	500	600	700	800	800	1000	1300	1350	2000
Blanking slider stroke		mm	300	300	400	400	800	1000	1300	1350	2000
Stretch slider size	L-R	mm	560	720	1000	1260	1400	3000	1900	2000	2000
Stretch slider size	F-B	mm	500	580	900	1200	1400	2200	1500	1950	1800
Blanking slider size	L-R	mm	560	720	1000	1260	1400	3000	2600	3000	3500
Blanking slider size	F-B	mm	500	580	900	1260	1400	2200	2200	2500	3500
Worktable size	L-R	mm	560	720	1000	1260	1400	3000	2600	3000	3500
Worktable size	F-B	mm	500	580	900	1200	1400	2200	2200	2500	3500
Stretch slider opening height		mm	1100	1300	1400	1500	1700	1800	2000	2600	4500
Blanking slider opening height		mm	700	800	900	1000	1150	1800	2000	2400	4500
Stretch slider stoke speed	Empty	mm/s	120	120	100	100	100	100	100	100	100
	Work	mm/s	20	12-14	15	10	12	12	10-12	10	10
	Return	mm/s	100	120	52	60	80	100	80	80	80
Machine dimension	L-R	mm	2500	4000	4000	4500	5600	5800	5700	7000	8000
	F-B	mm	1500	2000	2000	2800	3000	3000	2800	2800	3800
	Height	mm	3200	4100	4400	4600	5500	6400	7400	9500	8800
Motor power		kW	5.5	7.5	15	22	30	50	60	154	154
