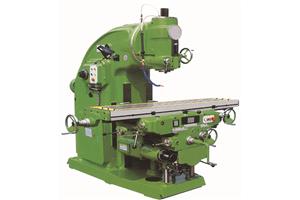

Compared with the horizontal milling machine, the main difference is that the spindle is vertically arranged. In addition to the different spindle arrangements, the table can be lifted up and down. The milling cutter for the vertical milling machine is relatively flexible and has a wide application range. An end mill, a machine clamp, a drill bit, etc. can be used in the vertical milling equipment. Milling key ways, milling planes, boring, etc.
Feature:
1. Vertical milling machine vertical milling head can adjust ±45° in vertical plane and reverse rotation, and expand the processing range of machine tool; spindle bearing is tapered roller bearing, bearing capacity is strong, and the spindle adopts energy consumption braking, braking The torque is large, stopping quickly and reliably.
2. Vertical milling equipment table X/Y/Z has three kinds of manual feed, motor feed and maneuver fast forward. The feed speed can meet different processing requirements; rapid feed can make the workpiece reach the machining position quickly and process Convenient and fast, reducing non-processing time.
3. Vertical milling machine X, Y, Z three-way guide rail sub-audio quenching, precision grinding and scraping treatment, with forced lubrication, improve accuracy and extend the service life of the machine.
4. Vertical milling equipment lubrication device can force lubrication of vertical, horizontal and vertical lead screws and guide rails to reduce the wear of the machine tool and ensure the efficient operation of the machine tool. At the same time, the cooling system changes the flow rate of the coolant by adjusting the nozzle. Meet different processing needs.
Models Available:
|
Model |
X5032 |
X5040 |
|
Workbench area |
320x1325mm |
400×1600mm |
|
Workbench T-groove number / slot width / slot |
3/18/70mm |
3/18/90mm |
|
Worktable max lateral stroke manual / maneuver |
700/680mm |
900/880mm |
|
Worktable max longitudinal stroke manual / maneuver |
255/240mm |
315/300mm |
|
Worktable max vertical stroke manual / maneuver |
370/350mm |
385/365mm |
|
Workbench fast moving speed vertical / horizontal / vertical |
2300/1540/770mm |
2300/2300/770mm |
|
Vertical milling head maximum angle of rotation |
45° |
45° |
|
Axial movement distance of the spindle |
70mm |
85mm |
|
Spindle end to table distance |
45/415mm |
30/500mm |
|
Spindle speed series |
18 stpes |
18 stpss |
|
Spindle speed range |
30-1500 r/mm |
30-1500 r/mm |
|
Main drive motor power |
7.5 kW |
11 kW |
