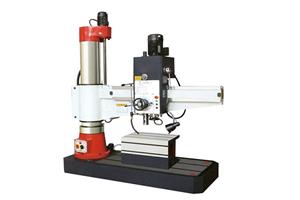

Radial drill machine is widely used in single and small batch production to process the holes of larger and heavier work pieces. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large work pieces.
Feature:
1. The hydraulic pre-selected shifting mechanism saves auxiliary time;
2. Spindle forward and reverse, stop (brake), shifting, neutral, etc., radial drill machine controlled by a handle, easy to operate the radial drilling machine;
3. The headstock, rocker arm and inner and outer columns are hydraulically driven diamond block clamping mechanism for reliable clamping;
4. The upper arm of the rocker arm, the main shaft sleeve and the inner and outer column rotating raceways are quenched to prolong the service life of the radial drilling machine;
5. The movement of the headstock can be maneuvered in addition to manual operation for the radial drill machine;
6. Complete safety protection device and external column protection and automatic lubrication device;
Models Available:
|
Model |
Z3040X16/2 |
Z3050X16/2 |
Z3063X20A |
Z3080X25 |
|
Max. drilling capacity |
40mm |
50mm |
63 mm |
80 mm |
|
Distance spindle axis to column generating line |
350-1600mm |
350-1600 mm |
450-2050 mm |
500-2500 mm |
|
Diameter of column |
350mm |
350mm |
450 mm |
550 mm |
|
Spindle taper |
MT4 |
MT5 |
MT5 |
MT6 |
|
Spindle travel |
315mm |
315mm |
400 mm |
450 mm |
|
Spindle speeds range |
25-2000 r/min |
25-2000 r/min |
20-1600 r/min |
16-1250 r/min |
|
Spindle speeds series |
16 |
16 |
16 |
16 |
|
Range of Spindle feeds |
0.04-3.2 mm/r |
0.04-3.2 mm/r |
0.04-3.2 mm/r |
0.04-3.2 mm/r |
|
Mpindle Spindle feeds |
16 |
16 |
16 |
16 |
|
Distance spindle nose to working surface of base |
350-1250mm |
320-1220mm |
400-1600 mm |
550-2000 mm |
|
Dimension of worktable (mm) |
630*500*500 |
630*500*500 |
950*630*500 |
1000*800*560 |
|
Dimension of base (mm) |
2400*1000*200 |
2400*1000*200 |
2900*1250*250 |
3530*1400*300 |
|
Power of Main motor |
3kW |
4kW |
5.5kW |
7.5kW |
