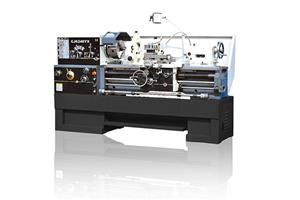

The CJYX lathe machine is a horizontal lathe that can process various types of work pieces such as shafts, discs, rings, etc. CJYX engine lathe is often used to machine the inner and outer rotary surfaces, end faces and various internal and external threads of the work piece, and the corresponding tools and accessories are also used. Drilling, reaming, tapping and knurling.
Standard accessories of the CJYX Lathe Machine:
1. 3 jaw chuck
2. Face plate
3. Reduction sleeve
4. Centers
5. Wrenches
6. Oil gun
7. Operation manual
Optional accessories:
1. 4 jaw chuck
2. Drive plate
3. Steady rest
4. Follow rest
5. Thread dial
6. Live center
7. Quick change toolpost
8. Taper copy ruler
9. 4-position longitudinal automatic trip
10. DRO
CJYX Engine Lathe Models Available:
|
Model |
CJ6236YX |
CJ6240YX |
CJ6246YX |
CJ6250YX |
CJ6256YX |
|
Max swing diameter of over bed |
360 mm (14”) |
400 mm (16”) |
460 mm (18”) |
500 mm (20”) |
560 mm (22”) |
|
Max swing diameter of over carriage |
220 mm (8”) |
250 mm (10”) |
300 mm (12”) |
340 mm (13”) |
390 mm (15”) |
|
Max swing diameter in gap |
600 mm (24”) |
660 mm (26”) |
700 mm (28”) |
740 mm (29”) |
780 mm (31”) |
|
Max workpiece length |
1000/1500/2000 mm |
||||
|
Effective gap length |
200mm |
||||
|
Bed width |
335mm |
||||
|
Spindle bore |
80 mm (D8) |
||||
|
Spindle taper of bore |
M.T.NO.7 |
||||
|
Spindle number of speeds |
12 Steps |
||||
|
Spindle range of speeds |
42-1800 rpm |
||||
|
Threads metric pitches |
0.5-20 mm/24 |
||||
|
Threads imperial pitches |
72-15/8TPI/6 |
||||
|
Threads diametric pitches |
96-3¼DP/45 |
||||
|
Threads module pitches |
0.25-10 mm/20 |
||||
|
Range of feeds longitudinal |
0.004-2.46 mm (0.0015”-0.0913”) |
||||
|
Range of feeds cross |
0.02-1.23 mm (0.0005”-0.0365”) |
||||
|
Tailstock quill external diameter |
75 mm |
||||
|
Max stroke of tailstock quill |
130 mm |
||||
|
Quill taper |
No.5 (Morse) |
||||
|
Max stroke of compound rest |
100 mm |
||||
|
Max cross slide stroke |
280 mm |
||||
|
Max size of tool shank |
25*25 mm |
||||
|
Motor power |
5.5 kW |
||||
