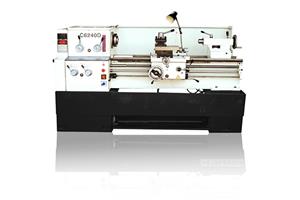

The CD lathe machine is a horizontal lathe that can process various types of work pieces such as shafts, discs, rings, etc. CD engine lathe is often used to machine the inner and outer rotary surfaces, end faces and various internal and external threads of the work piece, and the corresponding tools and accessories are also used. Drilling, reaming, tapping and knurling.
Standard accessories of the CD Lathe Machine:
1. 3 jaw chuck
2. Face plate
3. Reduction sleeve
4. Centers
5. Wrenches
6. Oil gun
7. Operation manual
Optional accessories:
1. 4 jaw chuck
2. Drive plate
3. Steady rest
4. Follow rest
5. Thread dial
6. Live center
7. Quick change tool post
8. Taper copy ruler
9. DRO
CD Engine Lathe Models Available:
|
Model |
C6236D |
C6240D |
C6250D |
|
Max swing diameter of over bed |
360 mm (14”) |
400 mm (16”) |
500 mm (20”) |
|
Max swing diameter of over carriage |
220 mm (9”) |
250 mm (10”) |
325 mm (15”) |
|
Max swing diameter in gap |
490 mm (20”) |
530 mm (21”) |
630 mm (25”) |
|
Max work piece length |
750/1000/1500 mm |
||
|
Effective gap length |
160mm |
||
|
Bed width |
330mm |
||
|
Spindle bore |
52 mm |
||
|
Spindle taper of bore |
M.T.6 |
||
|
Spindle number of speeds |
16 Steps |
||
|
Spindle range of speeds |
19-1800 rpm |
||
|
Threads metric pitches |
0.45-20 mm/30 |
||
|
Threads imperial pitches |
80-1¾TPI/35 |
||
|
Threads diametric pitches |
160-3½DP/30 |
||
|
Threads module pitches |
0.25-10 mm/20 |
||
|
Range of feeds longitudinal |
0.05-2.49 mm |
||
|
Range of feeds cross |
0.025-1.25 mm |
||
|
Tailstock quill external diameter |
55 mm |
||
|
Max stroke of tailstock quill |
120 mm |
||
|
Quill taper |
No.4 (Morse) |
||
|
Max stroke of compound rest |
130 mm |
||
|
Max cross slide stroke |
255 mm |
||
|
Max size of tool shank |
20*20 mm |
||
|
Motor power |
5.5 kW |
||
